F5 Outboard Motor Pricing
| Model | Shaft | Each | Buy Now | |
|---|---|---|---|---|
| F5BMS | Short (15") | Sold Out | ||
| F5BML | Long (20") | Sold Out |

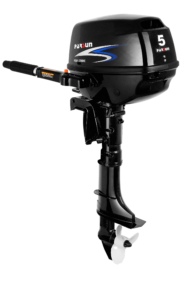

PARSUN 5 HP OUTBOARD MOTORS
- CDI ignition system for easy starting
- Twist grip throttle for easy maneuverability and safety
- Safety lanyard/emergency shutoff
- Thermostat controlled water cooling system for consistent engine temperature
- Heavy duty aluminum propeller
- Easy to monitor oil level gauge indicator
- Convenient 1.3L integral fuel tank (complete with external fuel tank hook up)
- Vibration reduction system
- Start in gear protection
- Shallow water drive tilt adjustment
- Ultra low emission, CE and EPA approved
Parts and parts prices for the 5 hp outboards can be viewed here.
F5 Outboard Motor Pricing
| Model | Shaft | Each | Buy Now | |
|---|---|---|---|---|
| F5BMS | Short (15") | Sold Out | ||
| F5BML | Long (20") | Sold Out |
5HP SPECIFICATIONS |
|||
| ITEM | F5BM | ||
| Engine type | 4-stroke,1-cylinders, OHV | ||
| Displacement | 112 cc | ||
| Bore x Stroke mm(in.) | 64.0×46.0(2.52×1.8) | ||
| Max output kw(hp) | 3.6(5) | ||
| Full throttle RPM range | 4000~5000 | ||
| Ignition system | TCI | ||
| Starting system | Manual | ||
| Steering system | Tiller control | ||
| Gear shift | Forward-Neutral-Reverse | ||
| Gear ratio | 2.08 (27/13) | ||
| Trim and tilt system | Manual,4 positions/Shallow drive | ||
| Max fuel consumption | 2.0 L/h | ||
| Fuel tank capacity | within 1.3 L | ||
| Sump oil capacity | 0.5 L | ||
| Gear oil capacity | 100cc | ||
| Dry weight | 24.5kg(S)/25.5kg(L) | ||
| Overall width mm(in.) | 390(15.4) | ||
| Recommended transom height | 381 mm(15 in.) / 508mm(20 in.) | ||
| Alternator output | NA | ||
| Propeller options* | 3-7.5″ x 7″(standard) or 3-7.5″ x 6″ | ||
*Propeller choice will vary by boat size and application.
*B=Back control(Tiller control), M=Manual start, S=Short shaft, L=Long shaft
