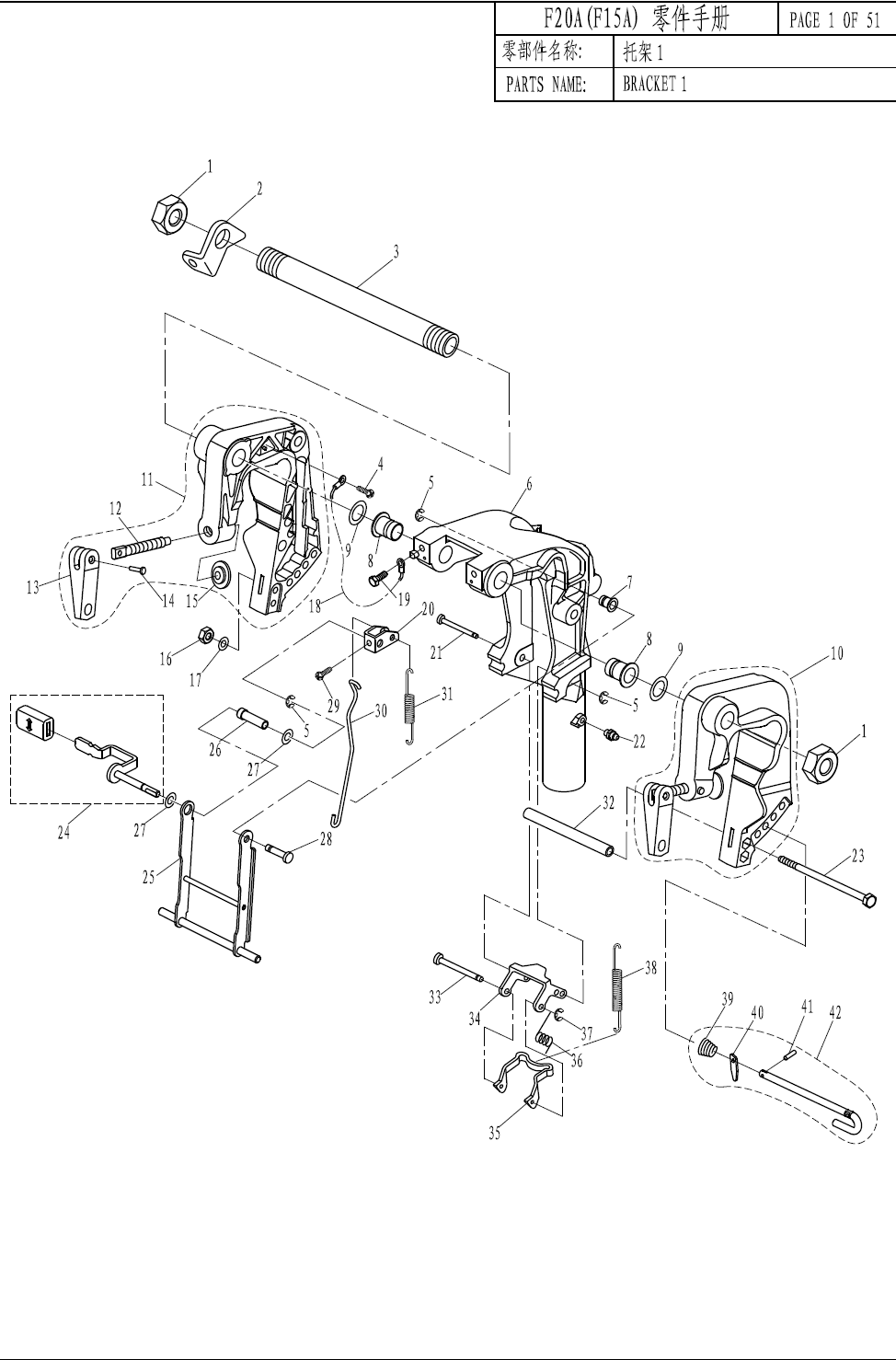

F20A Bracket 1 transom mounting and tilt parts

	SN	Parsun	Description	Each	Add to cart
	1	F15-01010007	NUT	1.8
	2	F15-01010003	PLATE
	3	F15-01010001	BOLT,CLAMP BRACKET
	4	GB/T818-M6x8	SCREW M6x8
	5	GB/T896-5	CIRCLIP 5	0.8
	6	F15-01010301L	BRACKET, ROTARY (L)
		F15-01010301S	BRACKET, ROTARY (S)
	7	F15-01010311	BUSH, NYLON
	8	F15-01010302	BUSH,ROTARY BRACKET
	9	F15-01010002	WASHER, NYLON
	10	F15-01010100	LEFT BRACKET ASSY	102.48
	11	F15-01010200	RIGHT BRACKET ASSY	98.8
	12	F15-01010102	SCREW, CLAMP	Part of Assembly
	13	F4-01010004	HANDLE	Part of Assembly
	14	F4-01010005	RIVET,CLAMP HANDLE	Part of Assembly
	15	F4-01010003	CLAMP PLATE	Part of Assembly
	16	GB/T6170-M6	NUT M6	0.8
	17	GB/T97.1-6	WASHER 6	0.6
	18	F15-01010202	TIGHTWIRE ,EARTHING
	19	GB/T5783-M8x12	BOLT M8x12
	20	F15-01010306	LEVER,ANGLE ORIENTATION
	21	F15-01010316	LONG SHAFT,LOCK ANGLE
	22	JB/T9740.1-M6	OILER M6
	23	GB/T5782-M6x145	BOLT M6x145	14.1
	24	F15-01010305	TILT CLAMP HANDLE ASSY
	25	F15-01010313A	SUPPORT ASSY	48.3
	26	F15-01010308	BUSH
	27	F15-01010309	WASHER, NYLON
	28	F15-01010312A	SHAFT, SUPPORT
	29	GB/T818-M5x6	SCREW M5x6
	30	F15-01010307A	LINK ROD
	31	F15-01010304	SPRING	10.6
	32	F15-01010006	BUSH
	33	F15-01010317-3	SHORT SHAFT,LOCK ANGLE
	34	F15-01010317-2	BRACKET,LOCK ANGLE
	35	F15-01010317-1	INNER BRACKET
	36	F15-01010315	SPRING, TORSION	8.4
	37	GB/T896-4	CIRCLIP 4
	38	F15-01010314A	SPRING, TENSION	11.8
	39	F15-01010402	CONICAL SPRING
	40	F4-01050003	NOG,PREVENTED UNLOCK
	41	GB/T879.1-?3x8	PIN,SPRING?3x8
	42	F15-01010400	LIMITATIVE ROD ASSY	39.9
