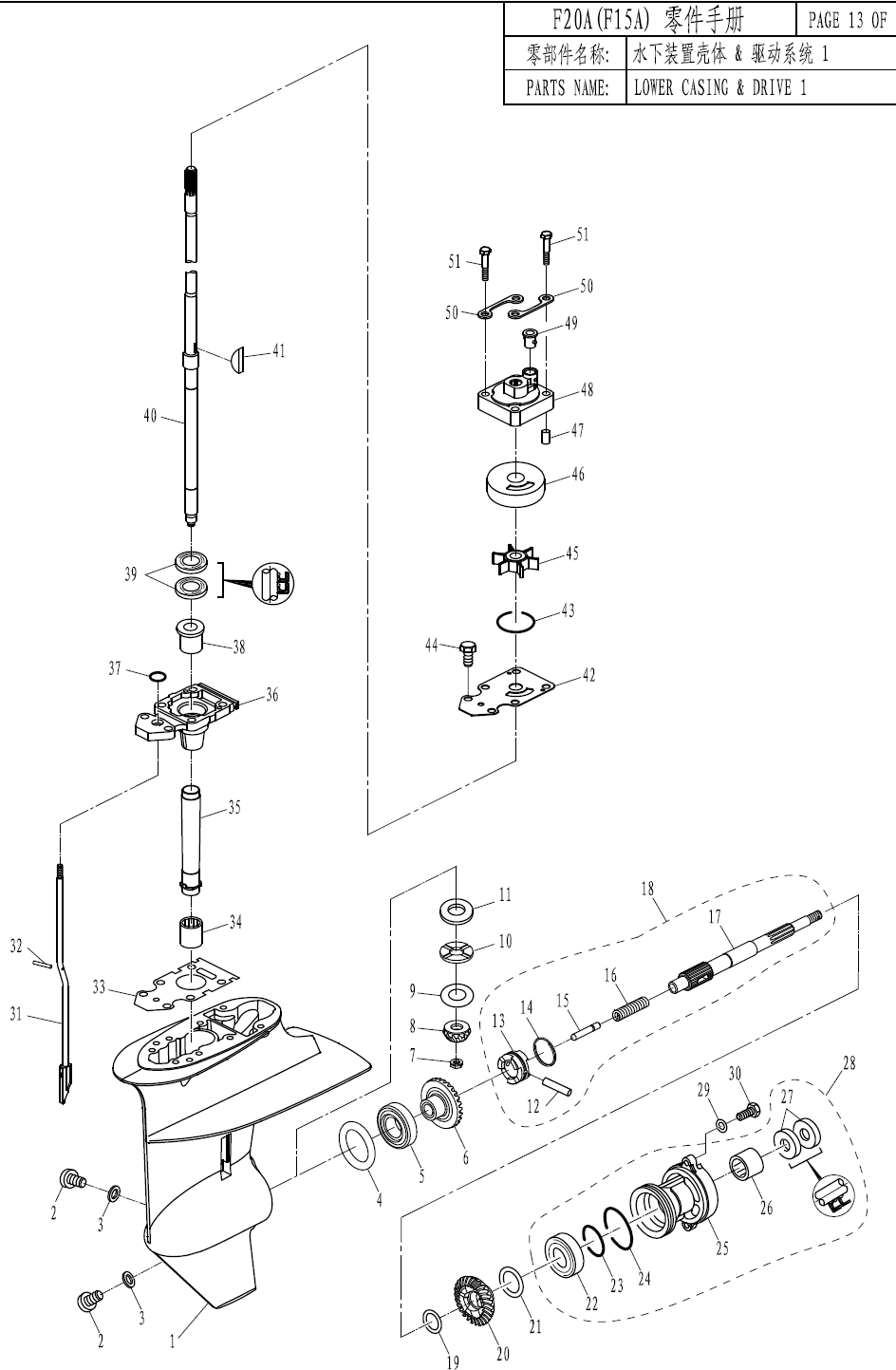

F20A Lower Casing and Drive 1 – Waterpump
| SN | Parsun | Fits Yamaha | Description | Each | Add to Cart |
| 1 | F15-06000001 | 63V-45311-00-4D | LOWER CASING | | |
| 2 | F4-03000023 | 90340-08002 | PLUG,OIL HOSE | 13.6 | |
| 3 | F4-03000024 | 90430-08020 | GASKET | 3.4 | |
| 4 | F15-06000010-1 | 664-45567-01 | SHIM (t:0.10mm) | | |
| F15-06000010-2 | 664-45567-10 | SHIM (t: 0.12mm) | | |
| F15-06000010-3 | 664-45567-20 | SHIM (t: 0.15mm) | | |
| F15-06000010-4 | 664-45567-30 | SHIM (t: 0.18mm) | | |
| F15-06000010-5 | 664-45567-40 | SHIM (t: 0.30mm) | | |
| F15-06000010-6 | 664-45567-50 | SHIM (t: 0.40mm) | | |
| F15-06000010-7 | 664-45567-60 | SHIM (t: 0.50mm) | | |
| 5 | HR30205J | | BEARING | | |
| 6 | F20-04000100 | | GEAR, FORWARD | | |
| 7 | F15-06000012 | 90179-08M06 | NUT, PINION | 14.1 | |
| 8 | F20-04000003 | | PINION | | |
| 9 | F15-06000008 | | SHIM, PINION (t:1.13mm) | | |
| F15-06000009 | | SHIM, PINION (t:1.20mm) | 15.2 | |
| 10 | TE15-04000018 | 90209-14011 | WASHER, PINION | | |
| 11 | F15-06000020-1 | 90201-15017 | WASHER, BEARING | 16.8 | |
| 12 | F15-06070004 | 90250-05010 | PIN, CLUTCH | 7.6 | |
| 13 | F15-06070003 | 682-45631-01 | CLUTCH, DOG | 82.32 | |
| 14 | F15-06070005 | 648-45633-00 | RING, CLUTCH | 2.6 | |
| 15 | F15-06070006 | 650-45635-00 | PLUNGER, SHIFT | 11.4 | |
| 16 | F15-06070002 | 90501-14M06 | SPRING, CLUTCH | 3.4 | |
| 17 | F15-06070001 | 683-45611-00 | SHAFT, PROPELLER | 84.8 | |
| 18 | F15-06070000 | | PROPELLER SHAFT ASSY | | |
| 19 | F15-06070007 | 90201-17682 | WASHER,REVERSE GEAR | 4.2 | |
| 20 | F20-04000004 | | GEAR, REVERSE | | |
| 21 | F15-06080006-1 | 626-45577-00 | SHIM (t: 0.10mm) | 5.6 | |
| F15-06080006-2 | 626-45577-10 | SHIM (t: 0.20mm) | | |
| F15-06080006-3 | 626-45577-20 | SHIM (t: 0.30mm) | | |
| F15-06080006-4 | 626-45577-30 | SHIM (t: 0.40mm) | | |
| F15-06080006-5 | 626-45577-40 | SHIM (t: 0.50mm) | | |
| 22 | GB/T276-6005/P63 | | BEARING 6005 | 14.3 | |
| 23 | F15-06080002 | 93210-57M09 | O-RING A,COVER | 7.2 | |
| 24 | F15-06080003 | 93210-56M80 | O-RING B,COVER | 8 | |
| 25 | F15-06080001 | 683-45361-01-4D | COVER,LOWER CASING | | |
| 26 | GB/T290HK1712 | | BEARING HK1712 | | |
| 27 | F15-06080004 | 93101-17054 | OIL SEAL | 13.9 | |
| 28 | F15-06080000 | | COVER ASSY,LOWER CASING | 92.4 | |
| 29 | GB/T97.1-6 | 92995-06600 | WASHER 6 | 0.6 | |
| 30 | GB/T5783-M6x20 | | BOLT M6x20 | 4.2 | |
| 31 | F20-04020000L | 6AH-44150-10 | CAM ASSY, SHIFT ROD (L) | | |
| F20-04020000S | 6AH-44150-00 | CAM ASSY, SHIFT ROD (S) | | |
| 32 | GB/T879.1-2.5x14 | | PIN 2.5x14 | | |
| 33 | F20-04000001 | | GASKET, BASE | | |
| 34 | NSKF1420 | 93315-314V8 | BEARING | 47.39 | |
| 35 | F15-06000006 | 63V-45536-00 | BUSHING, NYLON | 19 | |
| 36 | F20-04010001 | | BASE,DRIVE SHAFT | | |
| 37 | F15-06020004 | 93210-06ME6 | O-RING | 2.2 | |
| 38 | F15-06020002 | 90381-14020 | BEARING | 31.5 | |
| 39 | F15-06020003 | 93101-20048 | OIL SEAL,DRIVE SHAFT | 13.9 | |
| 40 | F20-04030000L | 6AH-44510-00 | DRIVE SHAFT ASSY (L) | | |
| F20-04030000S | 6AH-44510-10 | DRIVE SHAFT ASSY (S) | | |
| 41 | F15-06000013 | 63V-44338-00 | KEY, WOODRUFF | 14 | |
| 42 | F20-04000002 | 68T-44323-00 | OUTER PLATE | 38.22 | |
| 43 | JASOF404-31-045 | | O-RING | | |
| 44 | GB/T5783-M8x25 | 97075-08025 | BOLT M8x25 | | |
| 45 | F15-06050000 | 63V-44352-00 | IMPELLER ASSY | 28.4 | |
| 46 | F15-06060002 | 63V-44322-00 | INNER SHELL,WATER PUMP | 41.16 | |
| 47 | F15-00000013 | 93604-10M03 | DOWEL PIN?4x12 | 4.2 | |
| 48 | F20-04040001 | 6AH-44311-00 | WATER PUMP HOUSING | 15.8 | |
| 49 | F25-04050004 | 6L2-44367-00 | SEAL,WATER PIPE | 5.2 | |
| 50 | F15-06000014 | 63V-44328-00 | FIXED PLATE,WATER PUMP | 6 | |
| 51 | GB/T5783-M8x45 | BOLT M8x45 | 6 | | |
