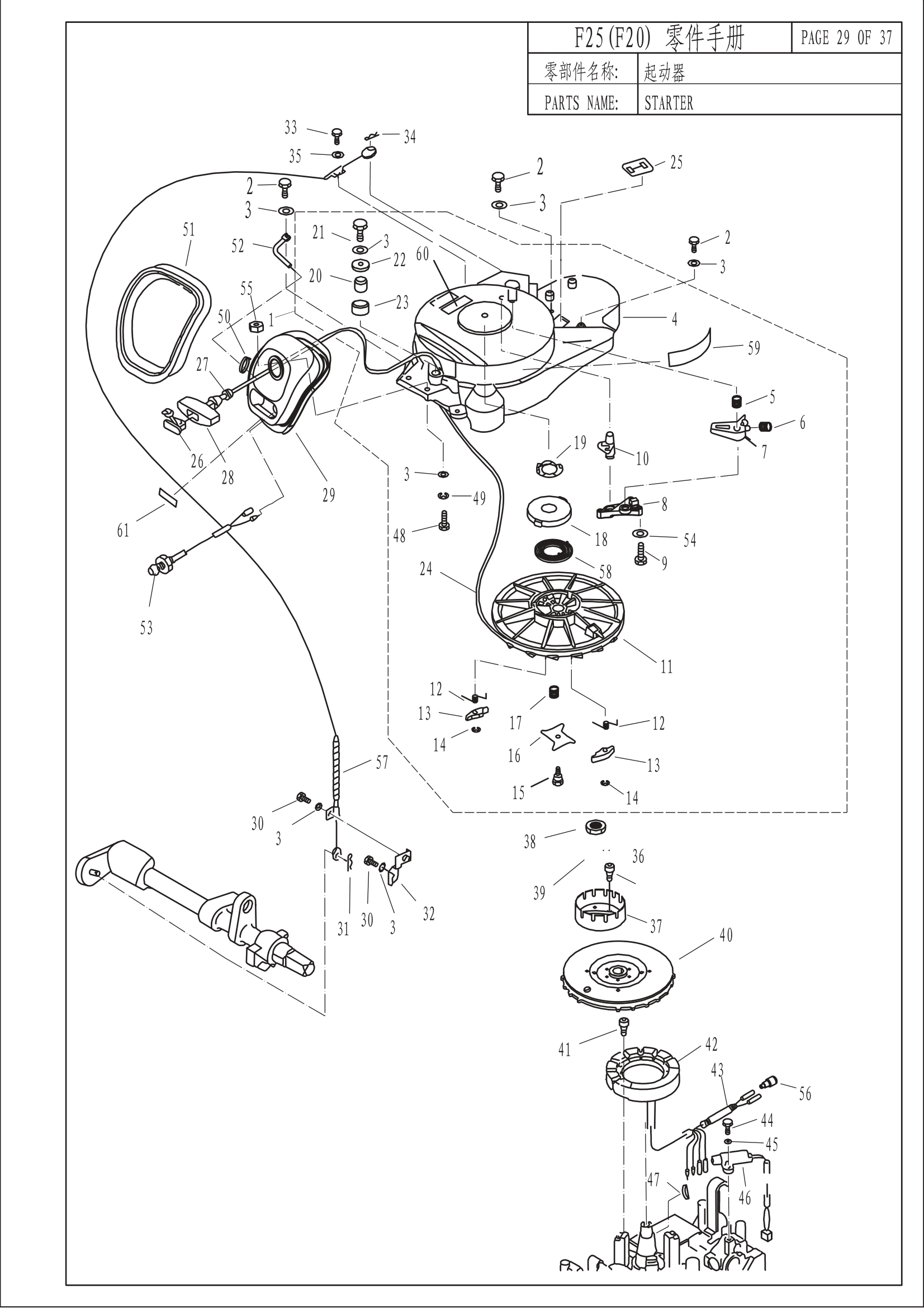

F25 Rope Starter
SN. PART NO. DESCRIPTION Each Availability Add to cart
1 F25-05160000 STARTER ASSY
2 GB/T5783-2000 BOLT 2.00
3 GB/T97.1-85 WASHER ?PLATE 0.40
4 F25-05160100 CASE, STARTER 89.60
5 F25-05160003 65W-15767-01 SPRING?ARRESTER 4.40 S/O
6 F25-05160005 65W-15784-00 SPRING?TENSION 4.00 S/O
7 F25-05160001 65W-15794-00 ARRESTER 7.20 S/O
8 F25-05160006 65W-15414-00 ARRESTER?CHANGLESS 10.00 S/O
9 GB/T5285-1985 SCREW?TAPPING
10 F25-05160004 65W-15735-01 PAWL?DRIVE 5.20 S/O
11 F25-05160301 WHEEL, START-UP
12 F25-05160304 65W-15734-00 PAWL?DRIVE SPRING 4.00 S/O
13 F25-05160305 65W-15741-10 PAWL?DRIVE 14.40 S/O
14 GB/T896-86 CIRCLIP 0.80 S/O
15 F25-05160018 PLATE?DRIVE BOLT 17.20 S/O
16 F25-05160017 65W-15716-00 PLATE?DRIVE 19.20 S/O
17 F25-05160016 65W-15715-00 SPRING?DRIVE PLATE 4.00 S/O
18 F25-05160014 65W-15713-00 SEAT?SPRING 16.00 S/O
19 F25-05160013 CUSHION?SPRING?SEAT
20 F25-05160009 AXES?PULLEY
21 GB/T5783-2000 BOLT 2.40
22 GB/T5287-1985 WASHER ?OUTSIZE
23 F25-05160008 PULLEY?STARTLING
24 F25-05160019 90890-44373(1.7m) START LING 13.00 S/O
25 F25-05160012 65W-81639-10 JACKET?RUBBER 6.00 S/O
26 F4-04130102 3R1-05131-0 COVER 4.00
27 F25-05160021 DAMPING 3.20 S/O
28 F25-05160501 HANDLE, STARTER 10.00 S/O
29 F25-05160401 FRAME?STARTER
30 GB/T5783-2000 BOLT 1.20
31 F15-00000012 SPRING 4.00
32 F25-05000028 STAY?CABLE COMP
33 GB/T5783-2000 BOLT 1.20
34 F25-05160002 SPRING 4.00
35 GB/T96-85 BIG WASHER 0.40
36 GB/T70.1-2000 BOLT
37 F25-05000027 JUMP START?AXES
38 F25-05000026 90170-20137 NUT?FLYWHEEL 12.00 S/O
39 F25-05000025 90201-21M18 WASHER?FLYWHEEL NUT 6.40 S/O
40 F25-05150000 FLYWHEEL ASSY
41 GB/T70.1-2000 BOLT
42 F25-05140000 STATOR ASSY
43 F25-05000034 RIPPLE JACKET
44 GB/T5783-2000 BOLT 1.20
45 GB/T97.1-8.5 WASHER? PLATE
46 F25-05110000 COIL?PULSER
47 F25-05000024 65W-11545-00 KEY?SEMISIRCLE FLYWHEEL 10.00 S/O
48 GB/T5783-2000 BOLT 1.80
49 GB/T93-1987 WASHER SPRING
50 HT2.5X60 CLAMP 2.00 S/O
51 F25-05160402 SEAL?FROTHY RUBBER
52 F25-05160403 NOG?UNCORK 11.20
53 F15-07130303 SUMP INDICATOR LIGHT 14.00
54 GB/T848-1985 SMALL WASHER
55 GB/T889.1-2000 LOCK NUT
56 F25-05110001 INSULATED PLUG
57 F25-05160200 CABLE COMP?STARTER STOP 20.20 S/O
58 F25-05160015 SPRING?VOLUTE 14.40 S/O
59 F25-08000006 MARK 6 3.20 S/O
60 F25-08000105 MARK 5
61 F25-12000012 MARK 12
