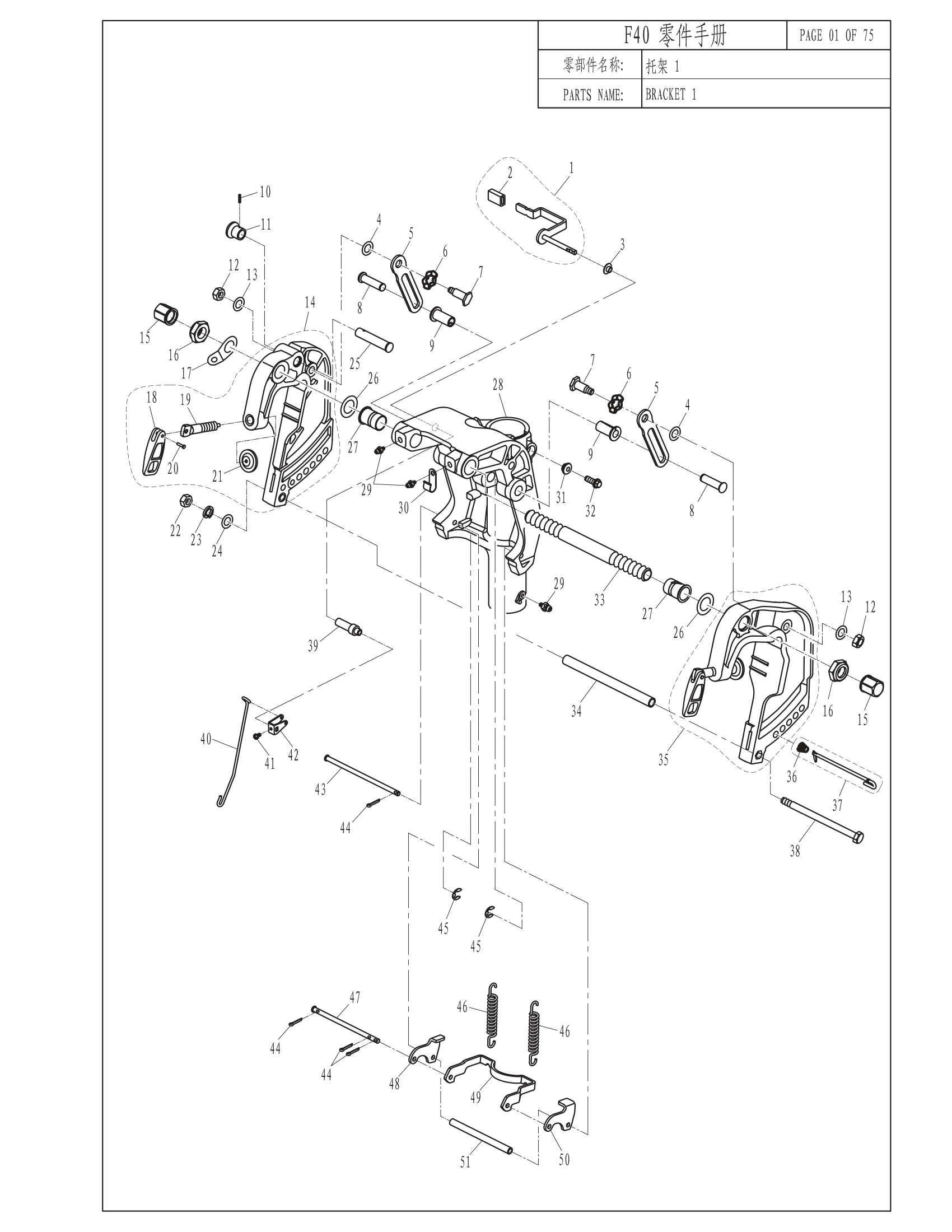

F40 Bracket 1 Diagram and Parts Listing
| S.N. | PART NO. | DESCRIPTION | Each | Add to Cart |
| 1 | F25-01010312 | LOCKING HANDLE ASSY | | |
| 2 | F15-01010305-3 | JACKET, HANDLE | | |
| 3 | F25-01010311 | BUSHING, LOCKING HANDLE | | |
| 4 | F25-01010009 | WASHER, NYLON | | |
| 5 | F25-01010321 | DETENT PLATE, TILT | | |
| 6 | F25-01010008 | WAVE WASHER | | |
| 7 | F25-01010007 | SCREW, PROLATE HEXAGON | | |
| 8 | F25-01010318 | PIN, DETENT PLATE | | |
| 9 | F25-01010319 | NYLON BUSHING, PIN | | |
| 10 | GB/T879.2-3x18 | PIN ยข3x18 | | |
| 11 | T40-01010102 | LIMITING HANDLE, TILT | | |
| 12 | GB/T6182-M8 | LOCKING NUT M8 | | |
| 13 | F25-01010010 | THICK WASHER 8 | | |
| 14 | F25-01010200 | CLAMP BRACKET ASSY (RIGHT) | | |
| 15 | F25-01010011 | PLASTIC NUT | | |
| 16 | F15-01010007 | SELF-LOCKING NUT, BRACKET | 1.8 | |
| 17 | F25-01010004 | PLATE , TWO HOLE | | |
| 18 | F25-01010102 | CLAMP HANDLE, STERN | | |
| 19 | F25-01010104 | CLAMP SCREW, STERN | | |
| 20 | F25-01010103 | RIVET, CLAMP HANDLE | | |
| 21 | F4-01010003 | CLAMP PAD | | |
| 22 | GB/T6170-M8 | NUT M8 | | |
| 23 | GB/T93-8 | WASHER , SPRING 8 | | |
| 24 | GB/T97.1-8 | WASHER 8 | | |
| 25 | T40-01010101A | LIMITING SHAFT, TILT | | |
| 26 | F25-01010003 | WASHER | | |
| 27 | F25-01010002 | BUSH , NYLON | | |
| 28 | F25-01010301A-L | ROTARY BRACKET (L) | | |
| F40-01010101A-S | ROTARY BRACKET (S) | | |
| 29 | GB/T7940.1-M6 | OIL CUP M6 | | |
| 30 | T36-04000023 | LINE CLAMP | | |
| 31 | F25-01010302 | SEAL, BOLT | | |
| 32 | F25-01010303 | FLANG BOLT M8x20 | | |
| 33 | F15-01010001 | BOLT, CLAMP BRACKBT | | |
| 34 | F25-01010006 | TUBE, BOLT | | |
| 35 | F25-01010100 | CLAMP BRACKET ASSY (LEFT) | | |
| 36 | F25-01010403 | CONICAL SPRING | | |
| 37 | F25-01010400 | LIMITING ROD ASSY | | |
| 38 | F25-01010005 | LONG BOLT M8x255 | | |
| 39 | F25-01010309 | BUSHING, LOCKING HANDLE | | |
| 40 | F25-01010315 | CONNECTING ROD, BRACKET | | |
| 41 | GB/T818-M5x6 | SCREW, PAN HEAD M5x6 | | |
| 42 | F25-01010313 | LEVER, ANGLE ORIENTATION | | |
| 43 | F25-01010305 | LONG SHAFT, LOCKING FRAME | | |
| 44 | GB/T91-2x12 | COTTER PIN 2x12 | | |
| 45 | GB/1896-9 | CIRCLIP 9 | | |
| 46 | F25-01010304 | TENSION SPRING, LOCKING FRAME | | |
| 47 | F25-01010307-3 | SHORT SHAFT, OUTER BRACKET | | |
| 48 | F25-01010307-4 | OUTER BRACKET (B) | | |
| 49 | F25-01010307-1 | INNER BRACKET | | |
| 50 | F25-01010307-2 | OUTER BRACKET (A) | | |
| 51 | F25-01010306 | TUBE , LONG SHAFT | | |
