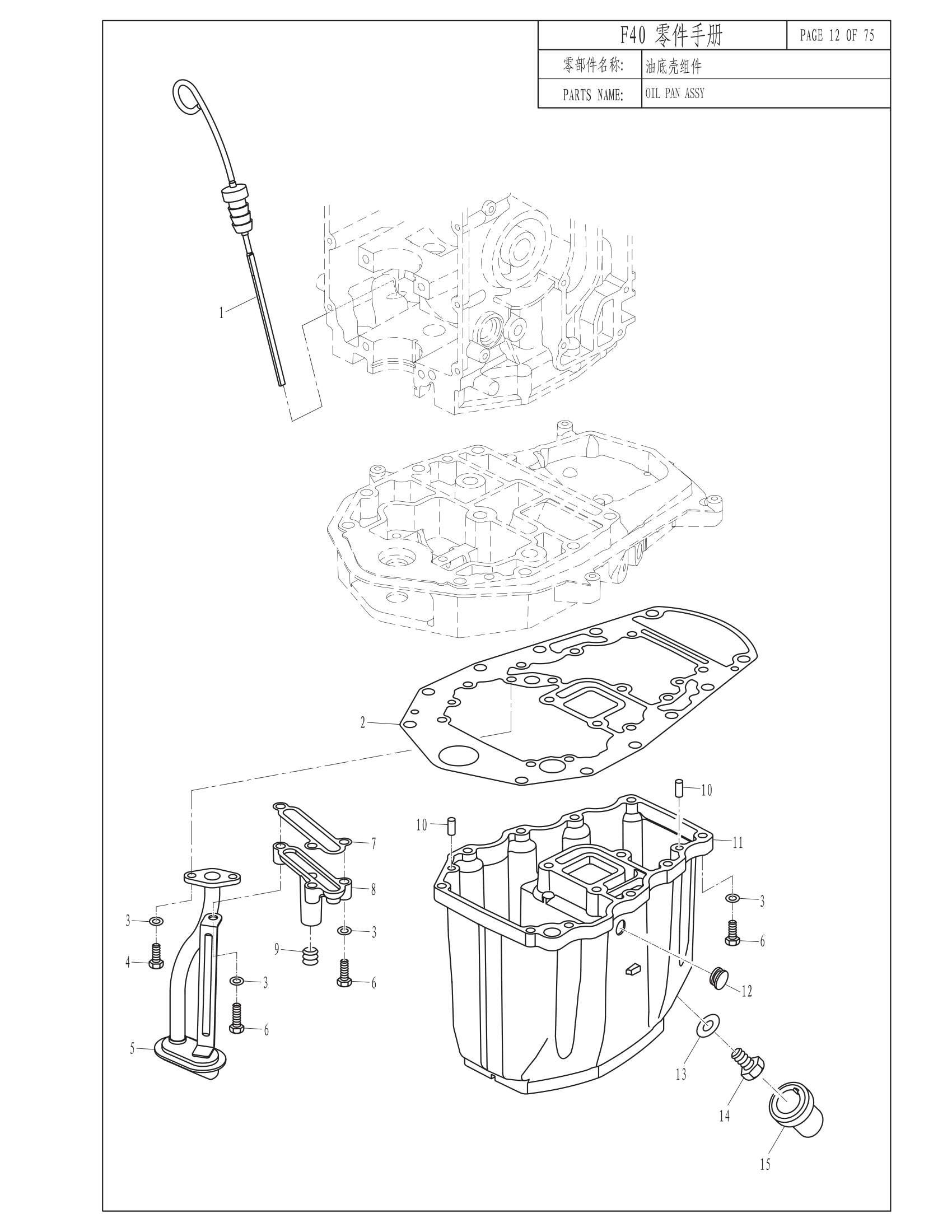

F40 Oil Pan Assembly

	S.N.	PART NO.	DESCRIPTION	Each	Add to Cart
	1	F40-05000032	OIL LEVEL ASSY
	2	F25-02010007	GASKET, OUTLET MANIFOLD
	3	GB/T97.1-6	WASHER 6	0.4
	4	GB/T5783-M6x16	BOLT M6x16	1.8
	5	F40-02010100	FILTER ASSY
	6	GB/T9074.14-M6X25	BOLT M6x25
	7	F25-02010006	GASKET, RELIEF VALVE
	8	F40-02010010	SHELL, RELIEF VALVE
	9	F15-07010004	PLUG	10
	10	F15-00000006	PIN ¢6x12	42
	11	F40-02010002	OIL PAN
	12	F40-02010003	RUBBER JAM
	13	F15-04000003	WASHER, BOLT	4
	14	F15-04000002	BOLT, OIL DRAIN	11.6
	15	F40-02010004	JACKET, OIL DRAIN
