| S.N. | PART NO. | DESCRIPTION | Each | Add to Cart | |
|---|---|---|---|---|---|

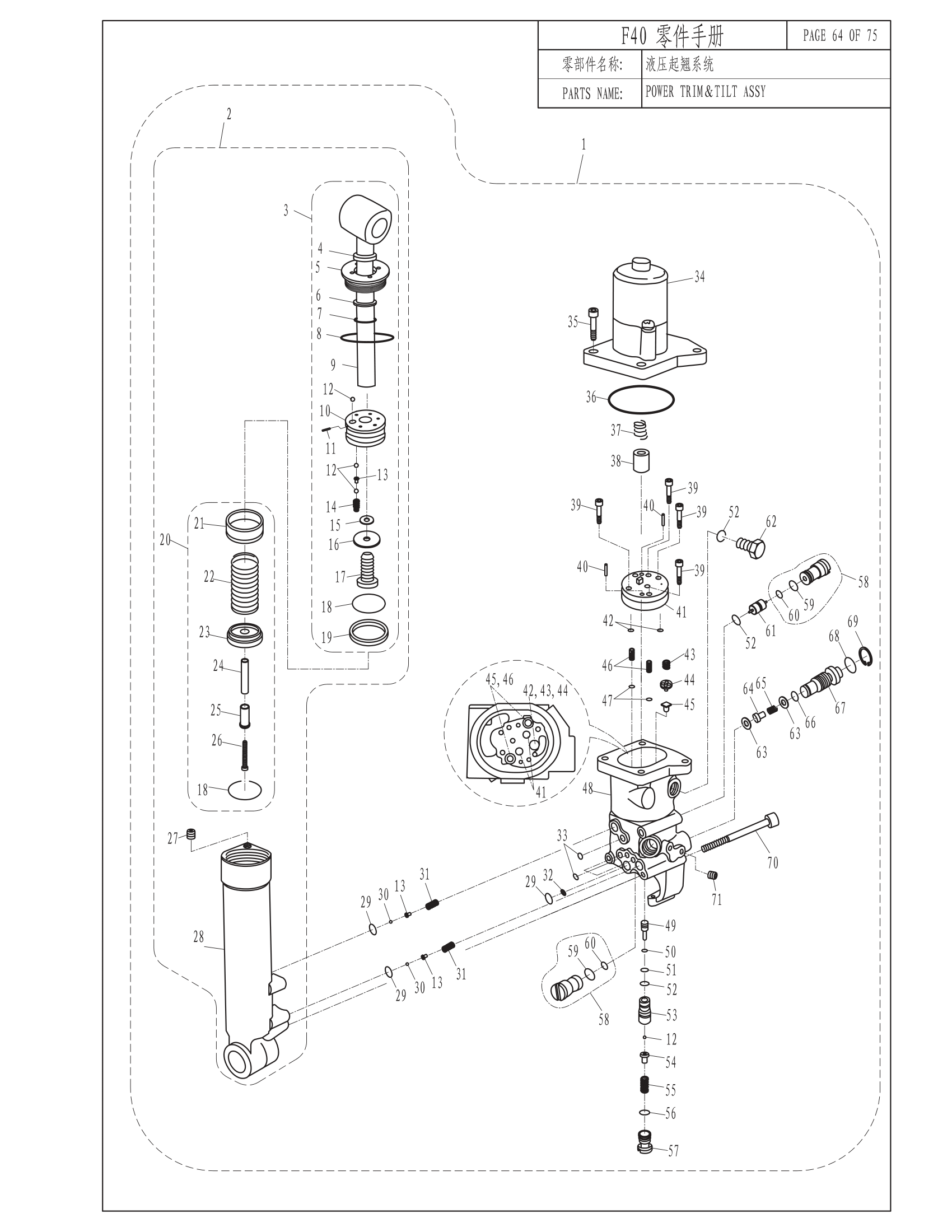

| 1 | T40-10000000 | HYDRAULIC TILT ASSY | |||
| 2 | T40-10010000 | LOCATING CYLINDER ASSY | |||
| 3 | T40-10030000 | LOCATING CYLINDER PISTON ASSY | |||
| 4 | T40-10030202 | OIL SEAL 15x23x5 | |||
| 5 | T40-10030200 | PISTON NUT | |||
| 6 | JISB2407P15T2 | CIRCLIP P15T2 | |||
| 7 | JISB2401P15 | O-RING ?14.8x?2.4 | |||
| 8 | JASO-F404-24-045 | O-RING ?44.7X?2.4 | |||
| 9 | T40-10030100 | SHAFT, TILT ASSY | |||
| 10 | T40-10030301 | PISTON | |||
| 11 | GB/T879.4-1.5x12 | PIN ?1.5x12 | |||
| 12 | T85-06020202 | BALL 4 | |||
| 13 | T85-06020005 | SEAT, SPRING | |||
| 14 | T40-10030001 | SPRING | |||
| 15 | T40-10030002 | WASHER | |||
| 16 | T40-10030003 | WASHER | |||
| 17 | GB/T10.2-M10x1.25x40 | SCREW M10x1.25x40 | |||
| 18 | JISB2401P39 | O-RING 38. 7x3. 5 | |||
| 19 | JISB2407P39T2 | RING, BACK UP P39T2 | |||
| 20 | T40-10010100 | FREE PISTON SUB ASSY | |||
| 21 | T40-10010101 | FREE PISTON | |||
| 22 | T40-10010102 | SPRING | |||
| 23 | T40-10010104 | SEAL | |||
| 24 | T40-10010103 | BUSH, BOLT | |||
| 25 | T40-10010105 | BUSH, PISTON | |||
| 26 | GB/T70.2-M4x35 | SCREW M4x35 | |||
| 27 | F15-07010004 | BLOCK, CYLINDER 1/8" | 10 | ||
| 28 | T40-10000002 | POSITION CYLINDER | |||
| 29 | JISFG11.2 | O-RING ?10.7x?1.5 | |||
| 30 | T40-10000001 | BALL 1/8" | |||
| 31 | T85-06020014 | SPRING, PISTON | |||
| 32 | T85-06010201 | FILTER | |||
| 33 | JISFG6 | O-RING ?5.5x1.5 | |||
| 34 | T40-10020500 | TILT MOTOR | |||
| 35 | GB/T70.1-M6x20 | SCREW M6x20 | |||
| 36 | GB/T3452.1-48x2 | O-RING 48x2 | |||
| 37 | T40-10020004 | SPRING | |||
| 38 | T40-10020003 | LINK, MOTOR | |||
| 39 | GB/T70.1-M4x25 | BOLT M4x25 | |||
| 40 | T85-06010705 | ROLLER ?4x21.8G2-2-4 | |||
| 41 | T40-10020400 | GEAR PUMP ASSY | |||
| 42 | JISFG5 | O-RING ?4.5x?1.5 | |||
| 43 | T40-10020002 | SPRING | |||
| 44 | T85-06010205 | PIN, VALVULA SUPORTE | |||
| 45 | T85-06010207 | SEAL, MAIN VALVE | |||
| 46 | T40-10020005 | FILTER, PUMP | |||
| 47 | JISFG4 | O-RING ?3.5x1.5 | |||
| 48 | T40-10020001 | HOUSING | |||
| 49 | T40-10020301 | PIN, VALVE SUPPORT | |||
| 50 | JISB2401P3 | O-RING 2. 8x1.9 | |||
| 51 | JISB2401P8 | O-RING 7. 8x1.9 | |||
| 52 | JISB2401P9 | O-RING 8. 8x1.9 | |||
| 53 | T40-10020302 | SEAT, RELIEF VALVE | |||
| 54 | T40-10020303 | SEAT, SPRING | |||
| 55 | T40-10020304 | SPRING, UP RELIEF | |||
| 56 | JISB2401P11 | O-RING 10. 8x2.4 | |||
| 51 | T40-10020305 | SCREW, VALVE LOCK | |||
| 58 | T85-06010503 | VALVE SUB ASSY | |||
| 59 | JISB2401P12.5 | O-RING 12x1.5 | |||
| 60 | JISFG12 | O-RING ?11.5x1.5 | |||
| 61 | T85-06010501 | PISTON, SHUTTLE | |||
| 62 | T85-06010009 | SCREW | |||
| 63 | T85-06010601 | WASHER, SEAL | |||
| 64 | T40-10020201 | SEAT, SPRING | |||
| 65 | T40-10020202 | SPRING | |||
| 66 | JISFG10 | O-RING 9. 5x1.5 | |||
| 67 | T85-06010606 | SCREW, MANUAL RELEASE | |||
| 68 | GB/T3452.1-17.5x2.65 | O-RING 17.5x2.65 | |||
| 69 | GB/1893.1-20 | RING, SNAP CIRCLIP 20 | |||
| 70 | GB/T70.1-M6x75 | BOLT M6x75 | |||
| 71 | T85-06010002 | BLOCK, CYLINDER 1/16" |
