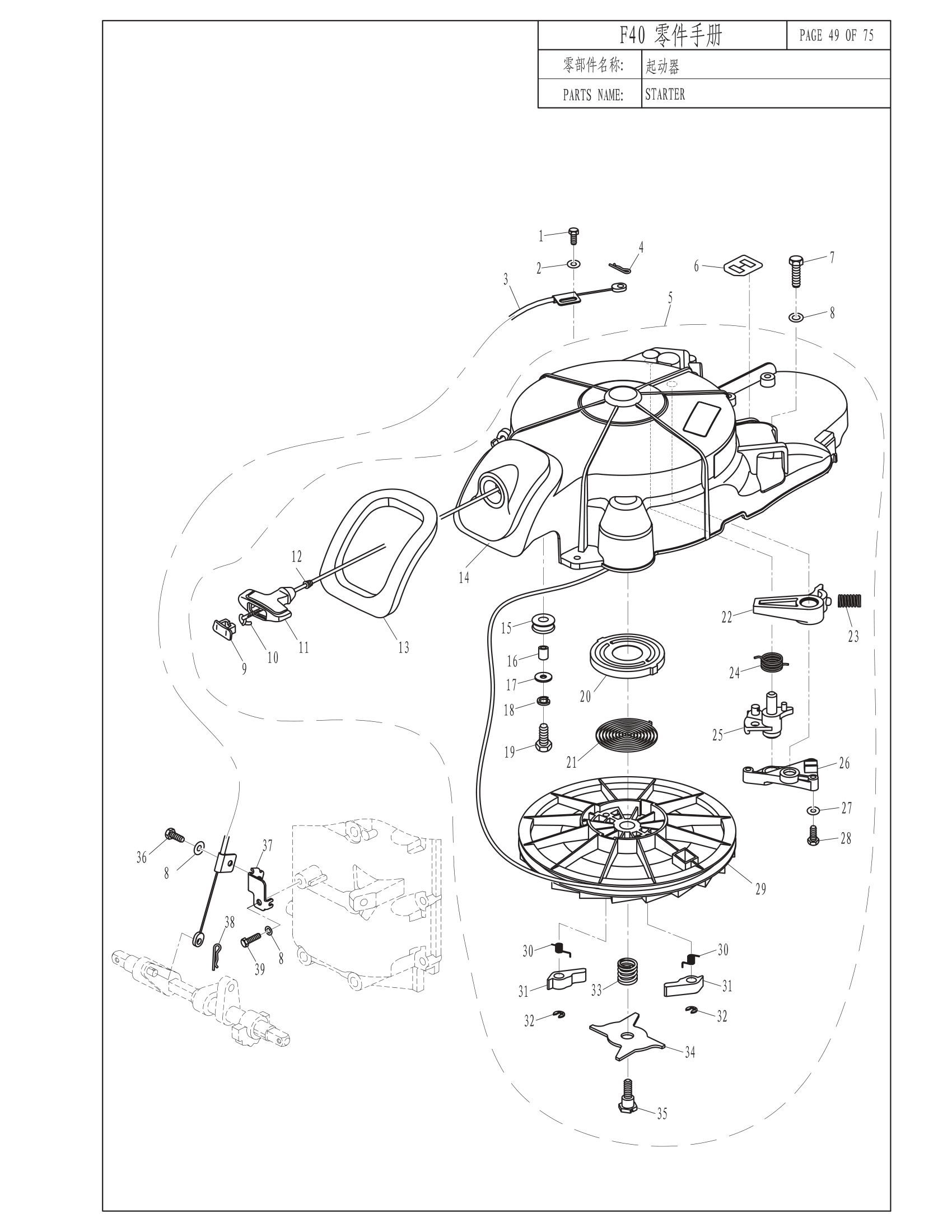

F40 Rope Starter

S.N.	PART NO.	Yamaha Part No.	DESCRIPTION	Each	Add to Cart
1	GB/T5783-M5x12	0	BOLT M5x12
2	GB/T96-5	0	BIG WASHER 5
3	F40-05080200	0	TIGHTWIRE ASSY, ARRESTER
4	F25-05160002	0	SPRING CLAMP
5	F40-05080000	0	STARTER ASSY
6	F25-05160012	65W-81639-10	RUBBER JACKET
7	GB/T9074.14-M6X25	0	BOLT M6x25
8	GB/T97.1-6	92995-06600	WASHER 6
9	F4-04130102	0	COVER, HANDLE
10	F25-05160019	90890-44373(1.7m)	START LINE
11	F25-05160501	689-15755-01	STARTER HANDLE
12	F25-05160021	697-15789-00	DAMPER, HANDLE
13	F40-05080001	0	SEAL, FROTHY RUBBER
14	F40-05080100	0	STARTER CASING ASSY
	F60-05000041A	0	COVER, FLY WHEEL
15	T40-05110002	663-15752-00	CHAIN WHEEL, STARTER
16	T40-05110003	6F5-15753-00	BUSHING, CHAIN WHEEL
17	GB/T96-6	0	BIG WASHER 6
18	GB/T93-6	92995-06100	SPRING WASHER
19	GB/T9074.14-M6X30	0	BOLT M6x30
20	F25-05160014	65W-15713-00	SEAT, VOLUTE SPRING
21	F25-05160015	0	VOLUTE SPRING
22	F25-05160001	65W-15794-00	BRAKE
23	F25-05160005	65W-15784-00	SPRING, PAWL
24	F25-05160003	65W-15767-01	TWIST SPRING, BRAKE
25	F25-05160004	65W-15735-01	PAWL, BRAKE
26	F25-05160006	65W-15414-00	FIXED PLATE, BRAKE
27	GB/T848-5	0	SMALL WASHER 5
28	GB/T5783-M5x30	0	BOLT M5x30
29	F25-05160300	0	WHEEL ASSY, START UP
30	F25-05160304	65W-15734-00	WRIST SPRING, PAWL
31	F25-05160305	65W-15741-10	PAWL, START UP
32	GB/T896-6	0	COTTER CIRCLIP 6
33	F25-05160016	65W-15715-00	SPRING, PLATE
34	F25-05160017	65W-15716-00	PLATE, START UP
35	F25-05160018	0	BOLT, PLATE
36	GB/T5783-M6x12	0	BOLT M6x12
37	F40-05000035	0	FIXED PLATE, TIGHTWIRE
38	F15-00000012	90468-18008	SPRING CLAMP ¢1.8
39	GB/T5783-M6x16	0	BOLT M6x16
