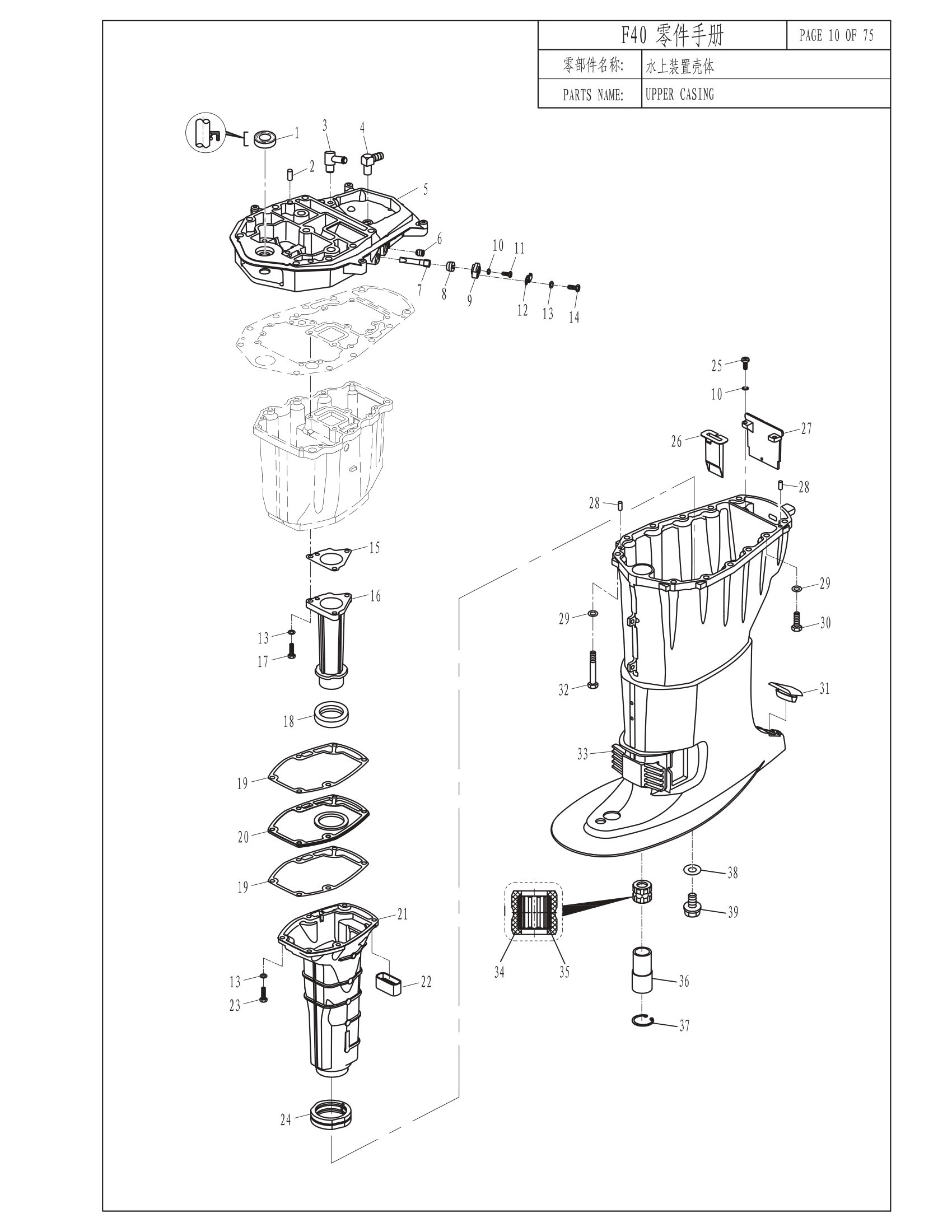

F40 Upper Casing Diagram and Parts Ordering
| S.N. | PART NO. | DESCRIPTION | Each | Add to Cart |
| 1 | F25-02010002 | OIL SEAL 16x30x6 | | |
| 2 | F25-00000014 | PIN ?8x12 | | |
| 3 | F15-04000005 | WATER NOZZLE | 50 | |
| 4 | F25-02010003 | JOINT B, GAS PIPE | | |
| 5 | F40-02010001 | SEAT, OUTLET MANIFOLD | | |
| 6 | F15-07010005 | PLUG 1/4 | 12.8 | |
| 7 | F25-02010005 | ANODE | | |
| 8 | F15-07010009 | SEAL, ANODE | 2.4 | |
| 9 | F15-07010011 | COVER, ANODE | 12 | |
| 10 | GB/T97.1-5 | WASHER 5 | 0.4 | |
| 11 | GB/T5783-M5x12 | BOLT M5x12 | | |
| 12 | F15-07010012 | PLATE, ANODE | 4.4 | |
| 13 | GB/T97.1-6 | WASHER 6 | 0.4 | |
| 14 | GB/T9074.14-M6X20 | BOLT M6x20 | | |
| 15 | F25-02000011 | GASKET, EXHAUST PIPE | | |
| 16 | F40-02010005 | EXHAUST PIPE | | |
| 17 | GB/T5783-M6x50 | BOLT M6x50 | | |
| 18 | F40-02010006 | SEAL RING, EXHAUST PIPE | | |
| 19 | F40-02010007 | GASKET, CLAPBOARD | | |
| 20 | F40-02010008 | CLAPBOARD | | |
| 21 | F40-02010009L | OUTLET MANIFOLD (L) | | |
| F40-02010009S | OUTLET MANIFOLD (S) | | |
| 22 | F40-02000008 | RUBBER JACKET B, OUTLET MANIFOLD | | |
| 23 | GB/T9074.14-M6X25 | BOLT M6x25 | | |
| 24 | F40-02000007 | RUBBER JACKET A, OUTLET MANIFOLD | | |
| 25 | GB/T818-M5x16 | SCREW M5x16 | 1.2 | |
| 26 | F40-02000004 | EXHAUST GUIDE, PLASTIC | | |
| 27 | F25-02000003 | CLAPBOARD, EXHAUST | | |
| 28 | F15-00000006 | PIN ?6x12 | 42 | |
| 29 | GB/T97.1-8 | WASHER 8 | | |
| 30 | GB/T9074.14-M8X30 | BOLT M8x30 | | |
| 31 | F40-00000002 | RUBBER PLUG, UPPER CASING | | |
| 32 | GB/T5783-M8x80 | BOLT M8x80 | | |
| 33 | F40-02000001L | UPPER CASING (L) | | |
| F40-02000001S | UPPER CASING (S) | | |
| 34 | T40-02000004 | RUBBER BUSHING | | |
| 35 | T40-02000003 | BUSHING, DRIVE SHAFT | | |
| 36 | F40-02000003 | JACKET, DRIVE SHAFT | | |
| 37 | GB/T893.1-32 | CIRCLIP 32 | | |
| GB/T893.1-30 | CIRCLIP 30 | | |
| 38 | F15-04000003 | WASHER, BOLT | 4 | |
| 39 | F15-04000002 | BOLT, OIL DRAIN | 11.6 | |
