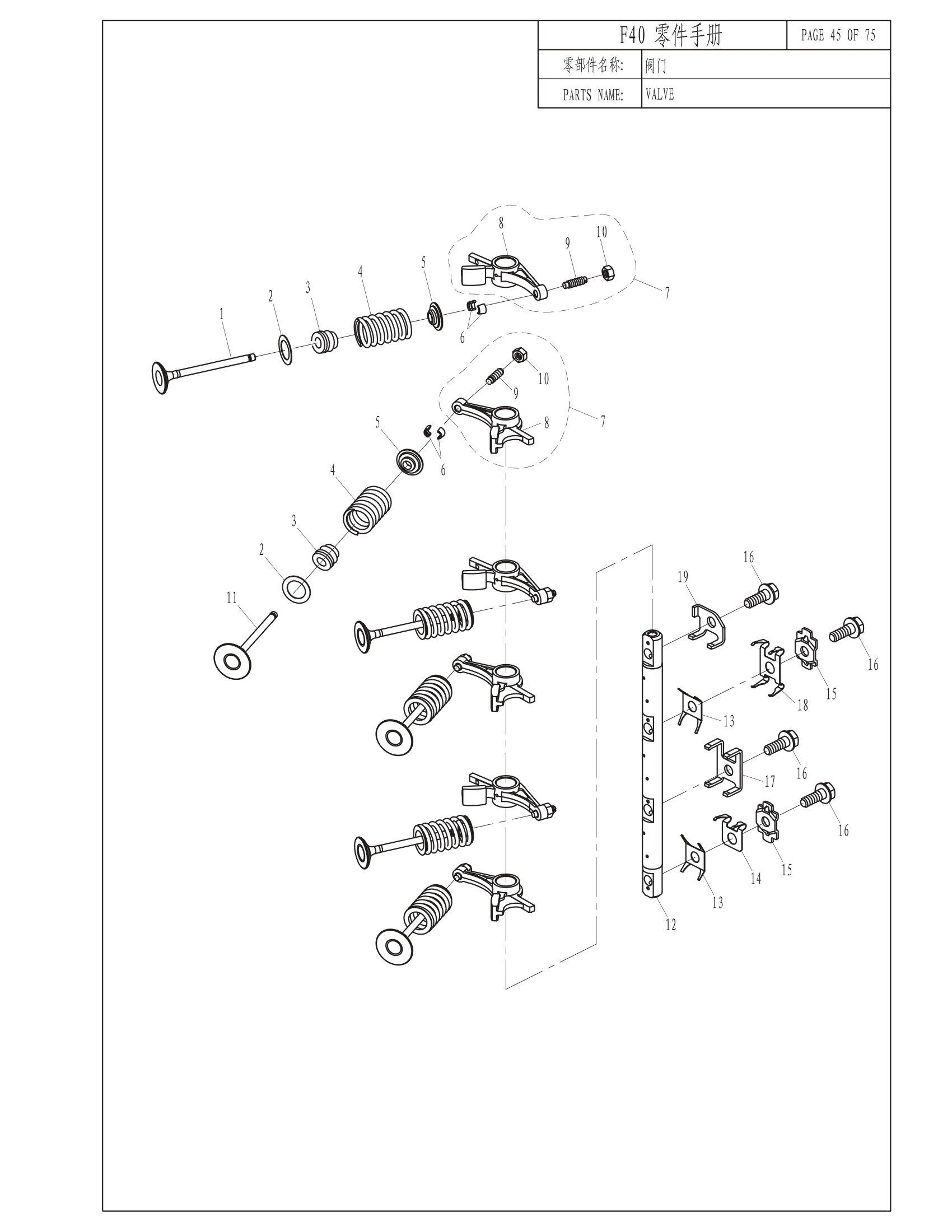

F40 Valve Train



S.N.PART NO.DESCRIPTIONEachAdd to Cart
1F25-05050002VALVE, EXHAUST
2F25-05050003WASHER, VALVE SPRING
3PS2700.04.03SEAL, VALVE STEM10
4F25-05050005SPRING, VALVE
5F15-07040006RETAINER, VALVE SPRING17
6F15-07040007COTTER, VALVE SPRING12
7F25-05050300ROCKER ASSY
8F25-05050301ROCKER
9F15-07040303SCREW, VALVE ADJUSTING4.8
10F15-07040304LOCK NUT10
11F25-05050001VALVE, INTAKE
12F40-05040001SHAFT, ROCKER
13F40-05040002SUPPORTING PLATE, SPRING PLATE
14F40-05040004SPRING PLATE A, ROCKER
15F25-05050012SPRING PLATE B, ROCKER
16F25-05050019FLANGE BOLT, ROCKER SHAFT
17F40-05040003FIXED PLATE B, ROCKER SHAFT
18F25-05050011SPRING PLATE, ROCKER
19F25-05050009FIXED PLATE A, ROCKER SHAFT
