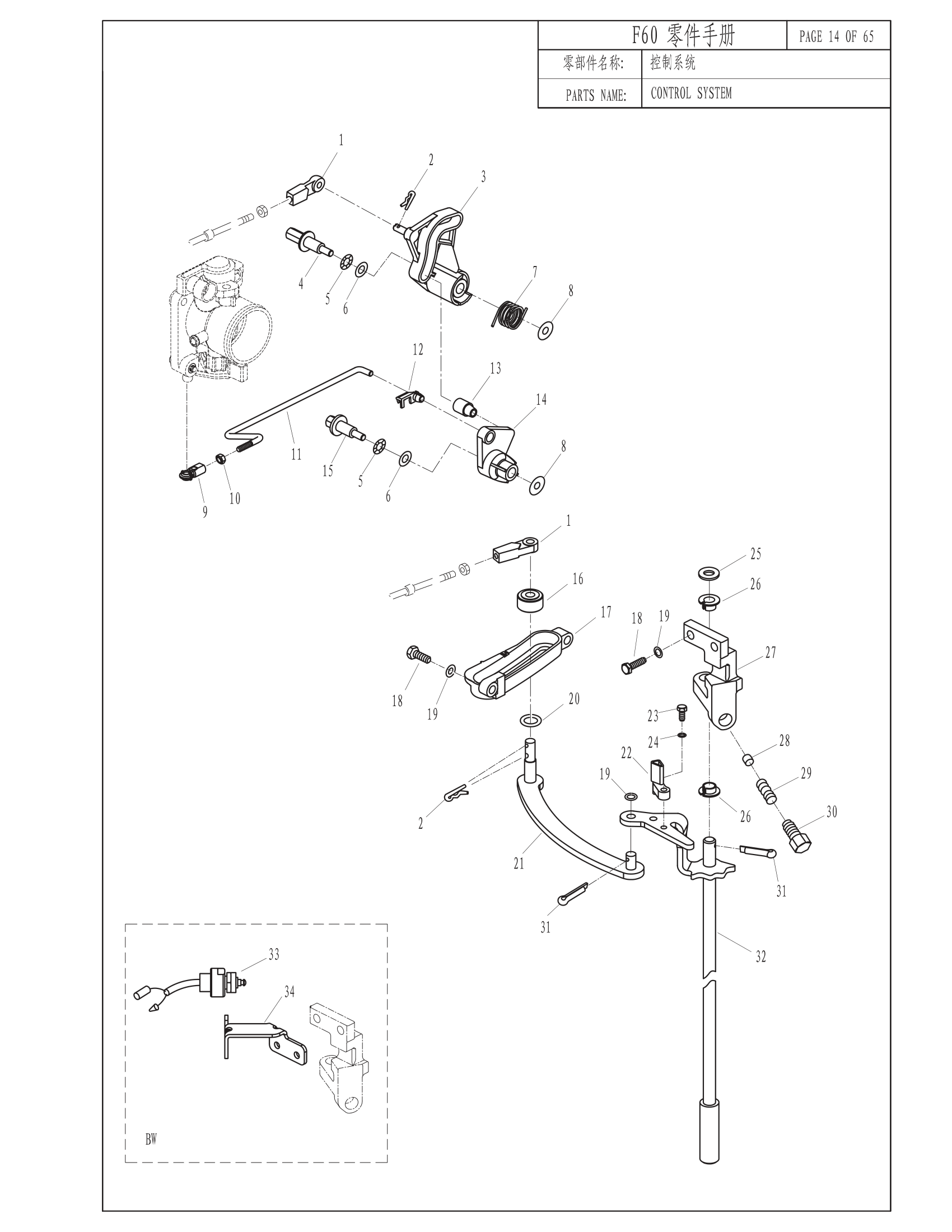

F60 Control System
S.N. PART NO. DESCRIPTION Each Add to Cart
1 F25-07000005W TIE-IN,CONTROL CABLE 16
2 F15-00000012 SPRING, CLAMP 50
3 F60-05000012 PULLEY DRIVE
4 F60-05000014-2 BOLT B, DRIVE PULLEY
5 F15-00000009 WAVE WASHER 80
6 F60-05000015 WASHER, DRIVE PULLEY
7 F60-05000013 TROSIONAL SPRING
8 JB/T96-6 BIG WASHER 6
9 T15-04040005 TIE-IN
10 GB/T6170-M5 NUT M5 0.03
11 F60-05000020 ROD, THROTTLE
12 F15-07130314W JOIN, CHOKE
13 F60-05000018 PULLEY
14 F60-05000017 DRIVEN PULLEY, THROTTLE
15 F60-05000014-1 SCREW A, DRIVE PULLEY
16 T85-00010010 PULLEY, ACCELEROGRAPH
17 F60-00000008 BRACKET, ACCELEROGRAPH
18 GB/T9074.14-M6X20 HEXAGON BOLT M6X20
19 GB/T97.1-6 WASHER, PLAIN 6 0.4
20 T85-00010008 WASHER, NYLON
21 F60-00000300 ACCELEROGRAPH BAR ASSY
22 F60-00000006 ROCKER, INCHING SWITCH
23 GB/T5783-M5x14 BOLT M5x14
24 GB/T97.1-5 WASHER 5 0.4
25 GB/T848-10 SMALL WASHER 10 1.2
26 F60-00000205 BUSH, SHIFT ROD
27 F60-00000204 BRACKET, SHIFT ROD
28 T20-03000006 PLUNGER, SHIFT CAM
29 T60-00010003 SPRING PLUNGER
30 F60-00000009 SPRING PLUNGER
31 GB/T91-02x16 PIN 2x16
32 F60-00000200 CONNECTING ROD, SHIFTING
33 T20-06000037W INCHING SWITCH
34 F60-00000007 BRACKET, INCHING SWITCH
