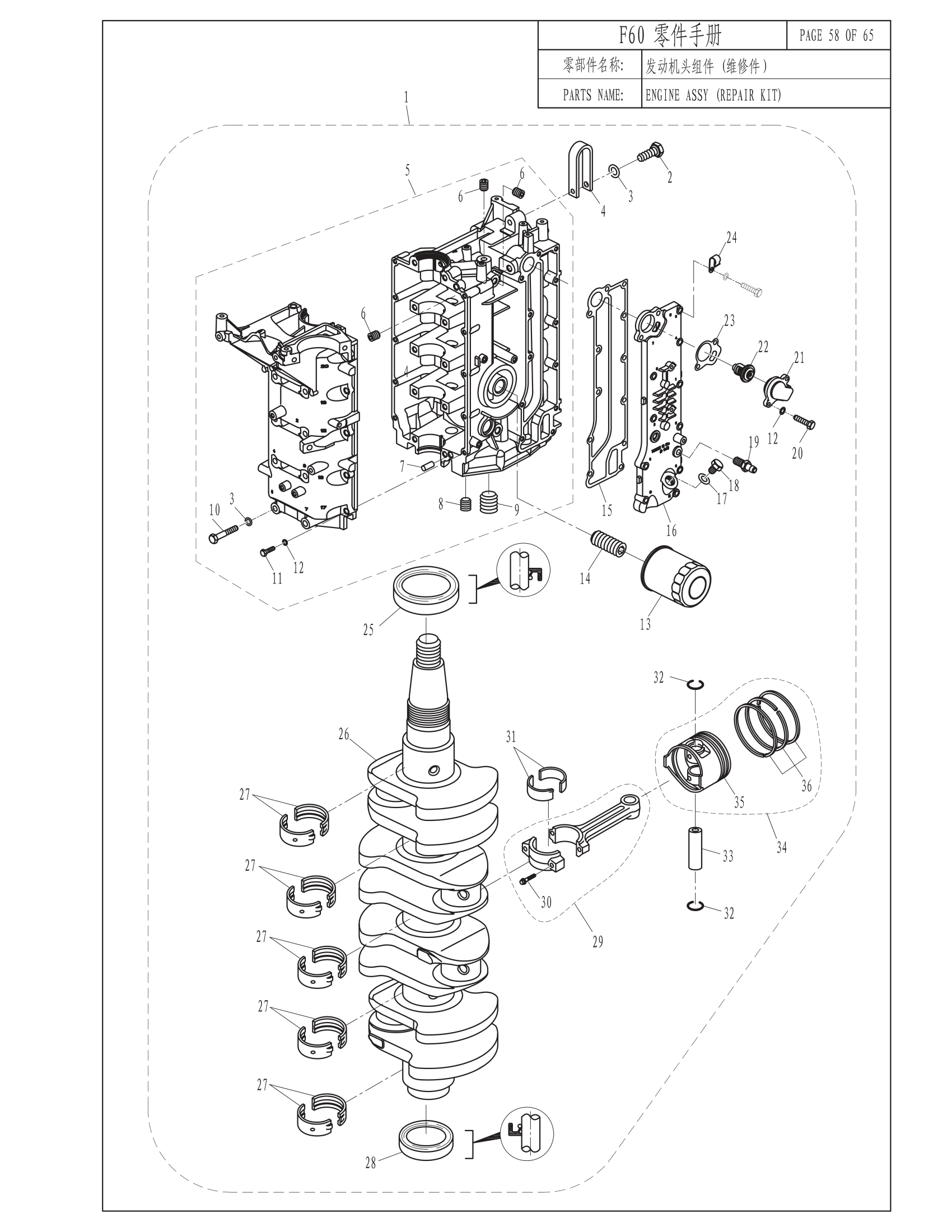

F60 Engine Assembly Repair

S.N.	PART NO.	Yamaha Part No.	DESCRIPTION	QTY Used
1	F60-05050000		ENGINE BLOCK ASSY	1
2	GB/T5783-M8x45		BOLT M8x45	1
	GB/T889.1-M8		LOCK NUT M8	1
3	GB/T97.1-8	92995-08100	WASHER 8	11
4	F25-05010106	65W-11119-00	HANGER,ENGINE	1
5	F60-05010000		CRANKCASE ASSY	1
6	F15-07010004		BLOCK, CYLINDER 1/8"	3
7	F25-00000014	99530-08012	PIN, DOWEL	2
8	F25-05010104		JAM 1/2"	1
9	F25-05010103		JAM 3/4"	1
10	F25-05000035		BOLT M8x80	10
11	F15-07000030		BOLT M6x35	10
12	GB/T97.1-6	92995-06600	WASHER, PLAIN 6	22
13	F25-05000100	5GH-13440-00	OIL CLEANER	1
14	F15-07010003	90401-20M00	BOLT, UNION	1
15	F60-05000004		GASKET, EXHAUST COVER	1
16	F60-05000005		COVER,EXHAUST	1
17	F40-05000038		GASKET, JAM	1
18	F40-05000037		JAM M18x1.5	1
19	F25-05010113	62Y-11372-01	NIPPLE,HOSE	1
20	GB/T9074.14-M6X35		HEXAGON BOLT M6X35	12
21	F15-07010021	6H3-12413-00-1S	COVER, THERMOSTAT	1
22	F15-07000031		THERMOSTAT	1
23	F15-07010022	6H3-12414-A1	GASKET, THERMOSTAT	1
24	F40-05000003		CLAMP	1
25	F25-05020003	93102-43M42	OIL SEAL B	1
26	F60-05000001		CRANKSHAFT	1
27	F25-05010302-1	62Y-11416-00	MAIN BEARING	10
	F25-05010302-2	62Y-11416-10	MAIN BEARING
28	F25-05020002	93102-35M47	OIL SEAL A	1
29	F25-05020200	67C-11650-00	ROD,CONNECTING	4
30	F25-05020204	62Y-11654-00	BOLT,CONNECTING ROD	8
31	F25-05020203-1	62Y-11656-00	PLANE BEARING,CONNECTING ROD	8
	F25-05020203-2	62Y-11656-10	PLANE BEARING,CONNECTING ROD
32	F25-05020106	93450-17129	CIRCLIP	8
33	F25-05020105	62Y-11633-00	PIN, PISTON	4
34	F40-05020100		PISTON ASSY	4
35	F40-05020101		PISTON	4
36	F25-05020102	67C-11603-00(STD)	PISTON RING ?	4
