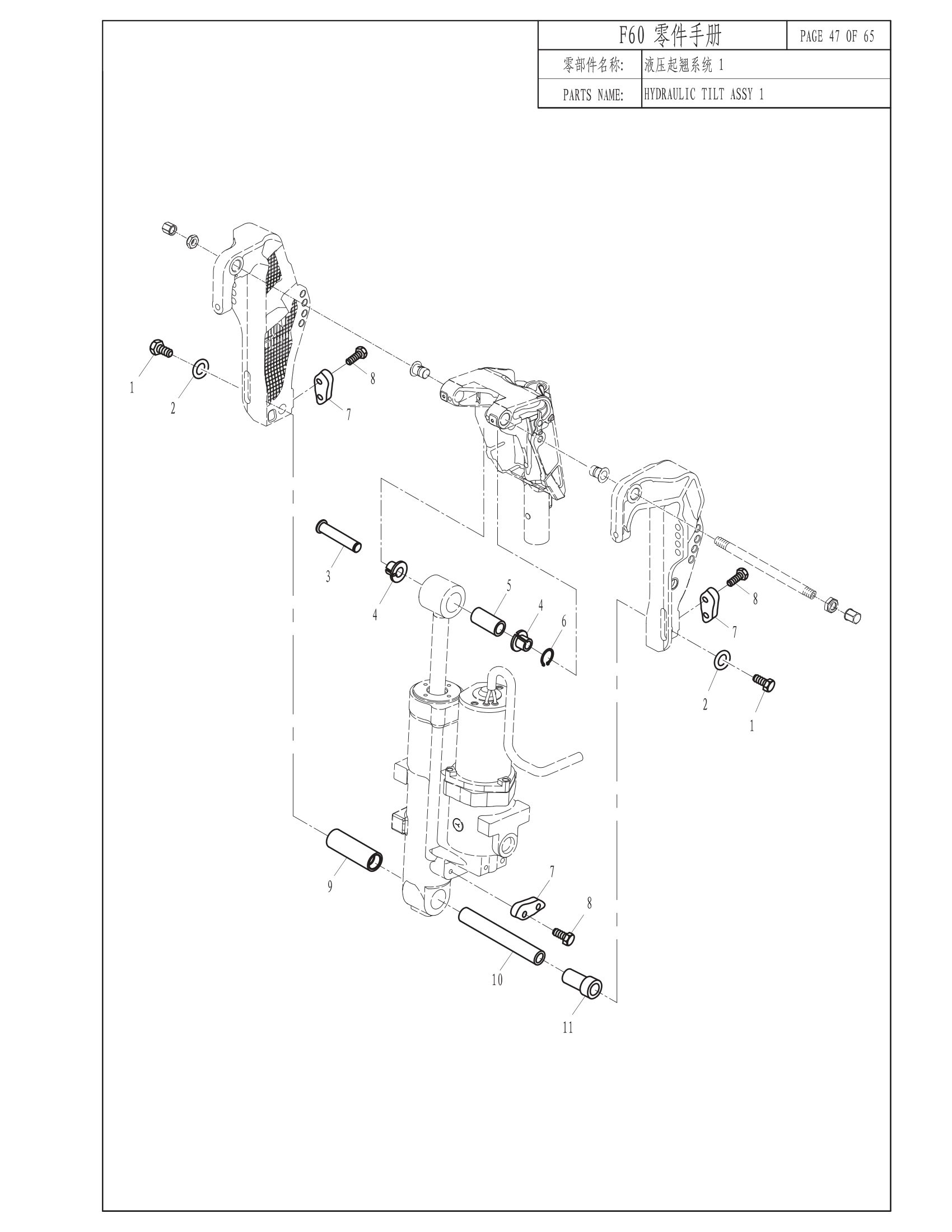

| S.N. | PART NO. | Yamaha Part No. | DESCRIPTION | QTY Used |
| 1 | GB/T5785-M10x1.25x30 | BOLT M10x1.25x30 | 2 | |
| 2 | F60-00000015 | WASHER 10 | 2 | |
| 3 | T85-00000016 | 6E5-43126-02 | PIN UPPER SHOCK MOUNT | 1 |
| 4 | T85-00000017 | 90386-18M35 | BUSH A | 2 |
| 5 | T85-01010007 | 90386-18M21 | BUSH | 1 |
| 6 | GB/T894.1-18 | 93410-18M02 | CIRCLIP 18 | 1 |
| 7 | E10-01010008 | ANODE | 3 | |
| 8 | GB/T9074.14-M6X25 | HEXAGON BOLT M6x25 | 6 | |
| 9 | F60-00000012 | BUSH A | 1 | |
| 10 | F60-00000011 | PIN | 1 | |
| 11 | F60-00000013 | BUSH B | 1 | |
