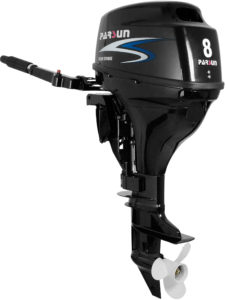

8 HP Outboard Motors Features
- CDI ignition system
- Twist grip throttle
- Safety lanyard/emergency shutoff
- Thermostat controlled water cooling system for consistent engine temperature
- Heavy duty aluminum high speed propeller
- Easy to monitor oil level gauge indicator
- Vibration reduction system
- Start in gear protection
- Shallow water drive
- Ultra low emission, CE and EPA approved
- 12L fuel tank and hose included
- Extra spark plugs and oil seals included
- Emergency tool kit included.
Lighter weight (84 lbs) and smaller size make this outboard motor easier to handle than the old 9.9 (115 lbs)
*Models with remote controls include a remote controls box: throttle/shifter/keyed electric start, wiring harness and 2×15′ cables.
Notes:
- You can look at parts diagrams for the 8 HP Outboard Motors here
- You can download a copy of the 8 HP Outboard Motor Owner’s Manual here
| Model | Shaft | Start | Steer | |
|---|---|---|---|---|
| F8BMS | Short | Manual | Tiller | |
| F8BML | Long | Manual | Tiller | |
| F8BWS | Short | Electric | Tiller | |
| F8BWL | Long | Electric | Tiller | |
| F8FWS | Short | Electric | Remote | |
| F8FWL | Long | Electric | Remote |
| Engine type | 4-stroke,2-cylinders, OHC | ||
| Displacement | 209 cc | ||
| Bore x Stroke mm(in.) | 55.0×44.0(2.17×1.73) | ||
| Max output kw(hp) | 8 | ||
| Full throttle RPM range | 5000~6000 | ||
| Ignition system | CDI | ||
| Starting system | Manual | Electric start+Manual start | |
| Steering system | Tiller control | Remote control | |
| Gear shift | Forward-Neutral-Reverse | ||
| Gear ratio | 2.08 (27/13) | ||
| Trim and tilt system | Manual,4 positions/Shallow drive | ||
| Max fuel consumption | 3.4 L/h | ||
| Fuel tank capacity | 12 L | ||
| Sump oil capacity | 0.8 L | ||
| Gear oil capacity | 320cc | ||
|   | manual start | electric start | with remote box |
| Dry weight | 38kg(S)/39.5kg(L) | 41.5kg(S)/43kg(L) | 41kg(S)/42.5kg(L) |
| Overall width mm(in.) | 364(14.3) | 364(14.3) | 328(12.9) |
| Recommended transom height | 381mm(15 in.) / 508mm(20 in.) | ||
| Alternator output | 12V DC* | 12V DC | |
| Propeller options* | 3-8.9 x 8.3″ | ||
*Propeller choice will vary by boat size and application.
*B=Back control(Tiller control), M=Manual start, S=Short shaft, L=Long shaft, W=Electric start+Manual start, F=Front control(Remote control)
*12V DC is an option
